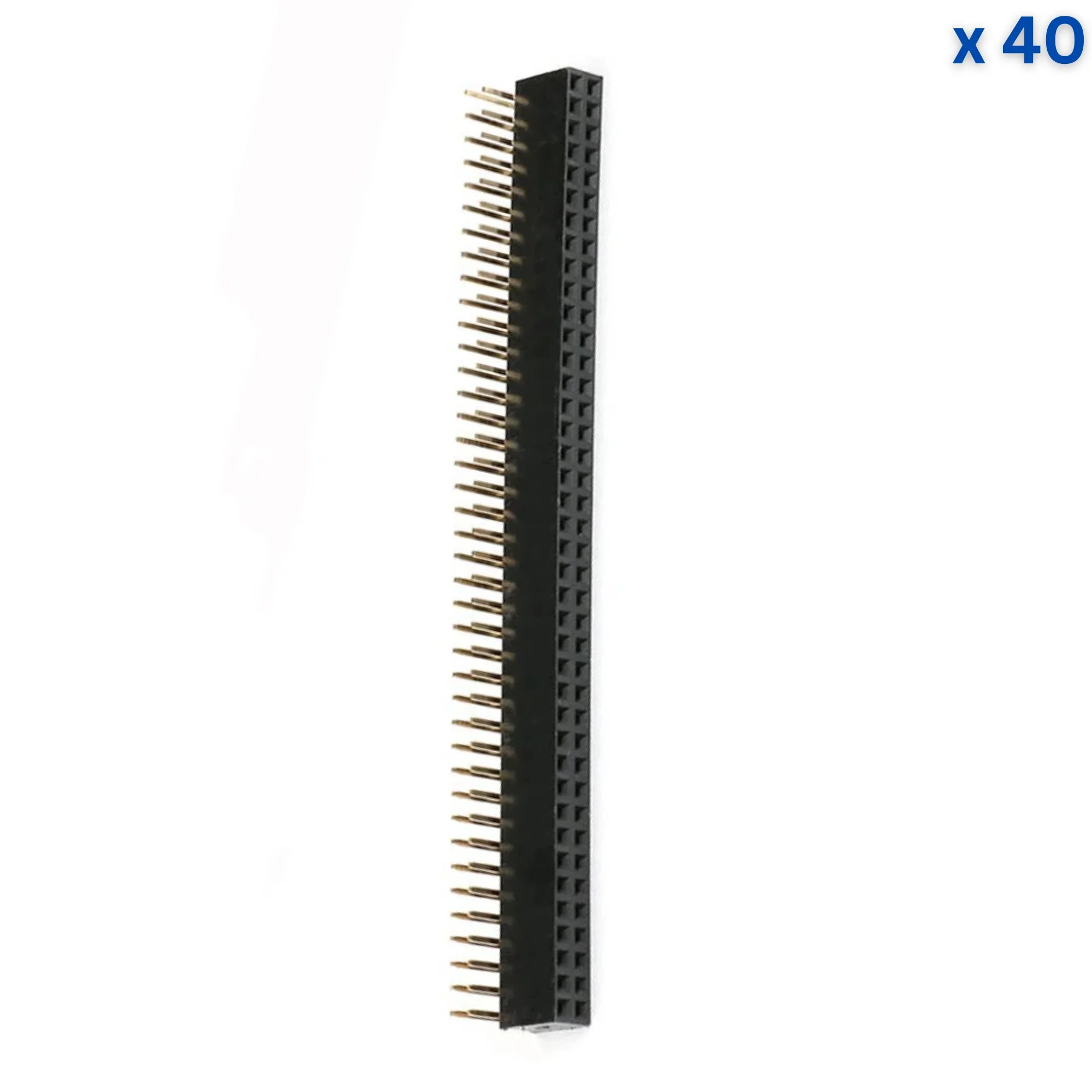

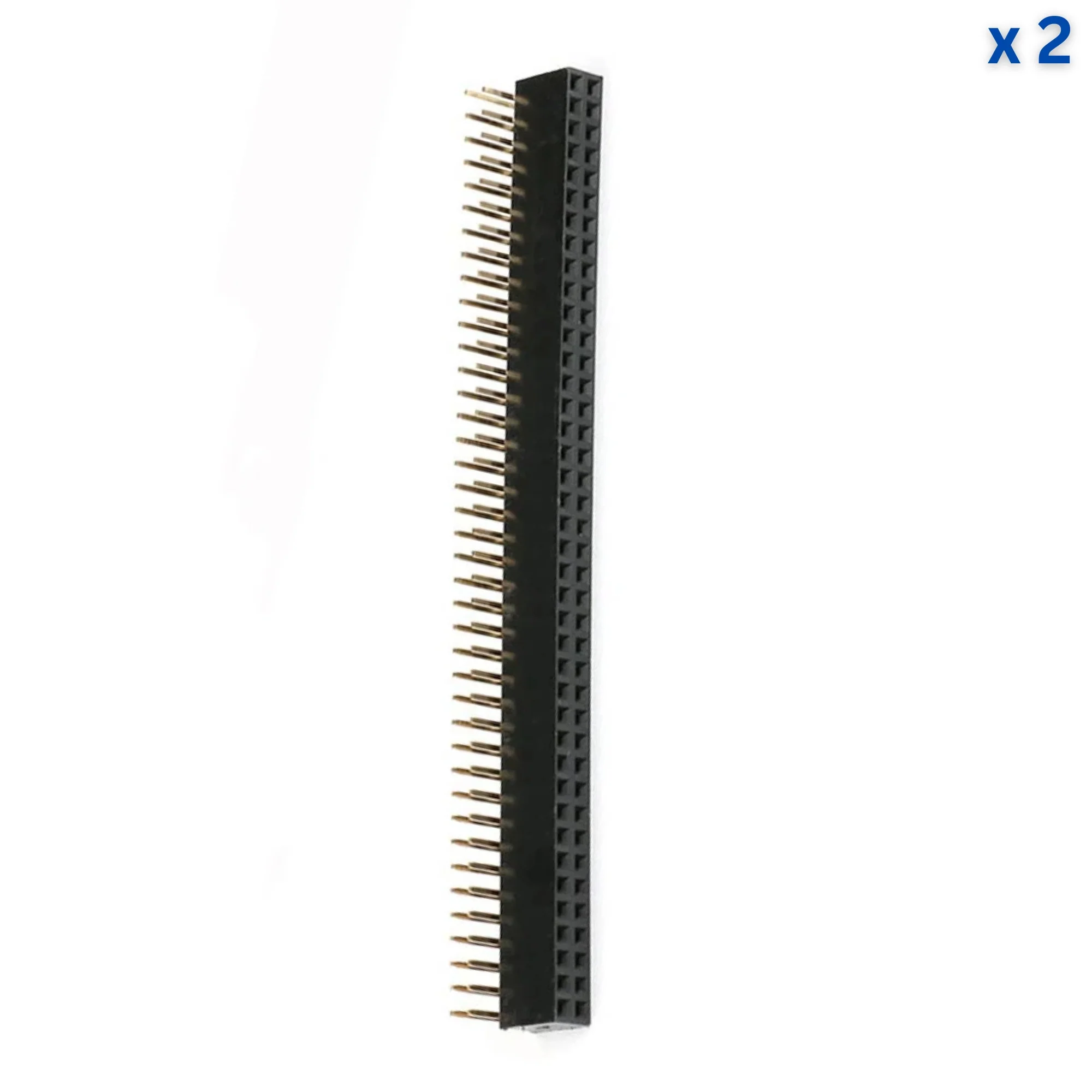

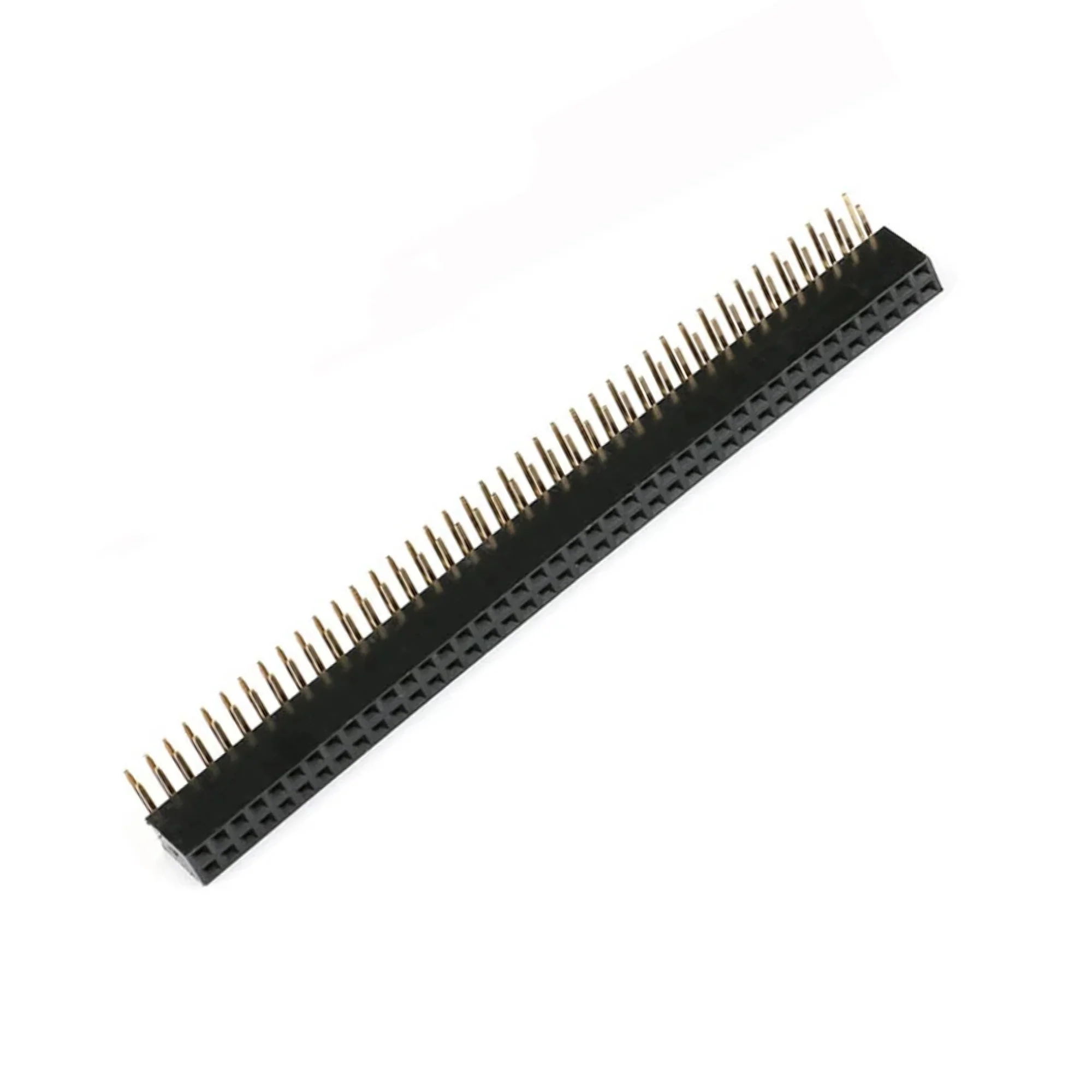

The 40×2 10 mm 2.54 mm Pitch Right Angle Female Pin Header is a dual-row through-hole connector designed for horizontal (right-angle) board-to-board or board-to-cable connections. With 80 female contacts arranged in two rows and a 10 mm insulated body height, it allows signals to be routed parallel to the PCB, making it ideal for space-constrained designs and side-entry connections. The standard 2.54 mm pitch ensures wide compatibility with common male headers and development boards.

Technical Specification:

• Product Type: Right Angle Female Pin Header

• Configuration: 2 × 40 pins (80 pins total)

• Pitch: 2.54 mm (0.1 inch)

• Row Spacing: 2.54 mm

• Insulator Height: 10 mm

• Mounting Type: Through-hole (THT)

• Pin Orientation: Right Angle (90°)

• Contact Material: Copper alloy

• Contact Plating: Tin-plated or gold-plated (typical)

• Insulator Material: Black thermoplastic

• Rated Current: ~1 A per pin (typical)

• Rated Voltage: Up to 250 V (typical)

• Operating Temperature: −40 °C to +105 °C (typical)

• Cuttable: Yes, can be cut to required pin length

Features:

• Standard 2.54 mm pitch for universal compatibility

• Right-angle design for horizontal PCB connections

• Dual-row configuration supports high-density interfaces

• 10 mm body height provides clearance and stability

• Strong and reliable through-hole soldering

• Durable construction for repeated mating cycles

Applications:

• Side-entry connections on PCBs

• Arduino, Raspberry Pi, and microcontroller expansion boards

• Board-to-board interconnections in compact enclosures

• Prototyping and development platforms

• Embedded systems and industrial electronics
