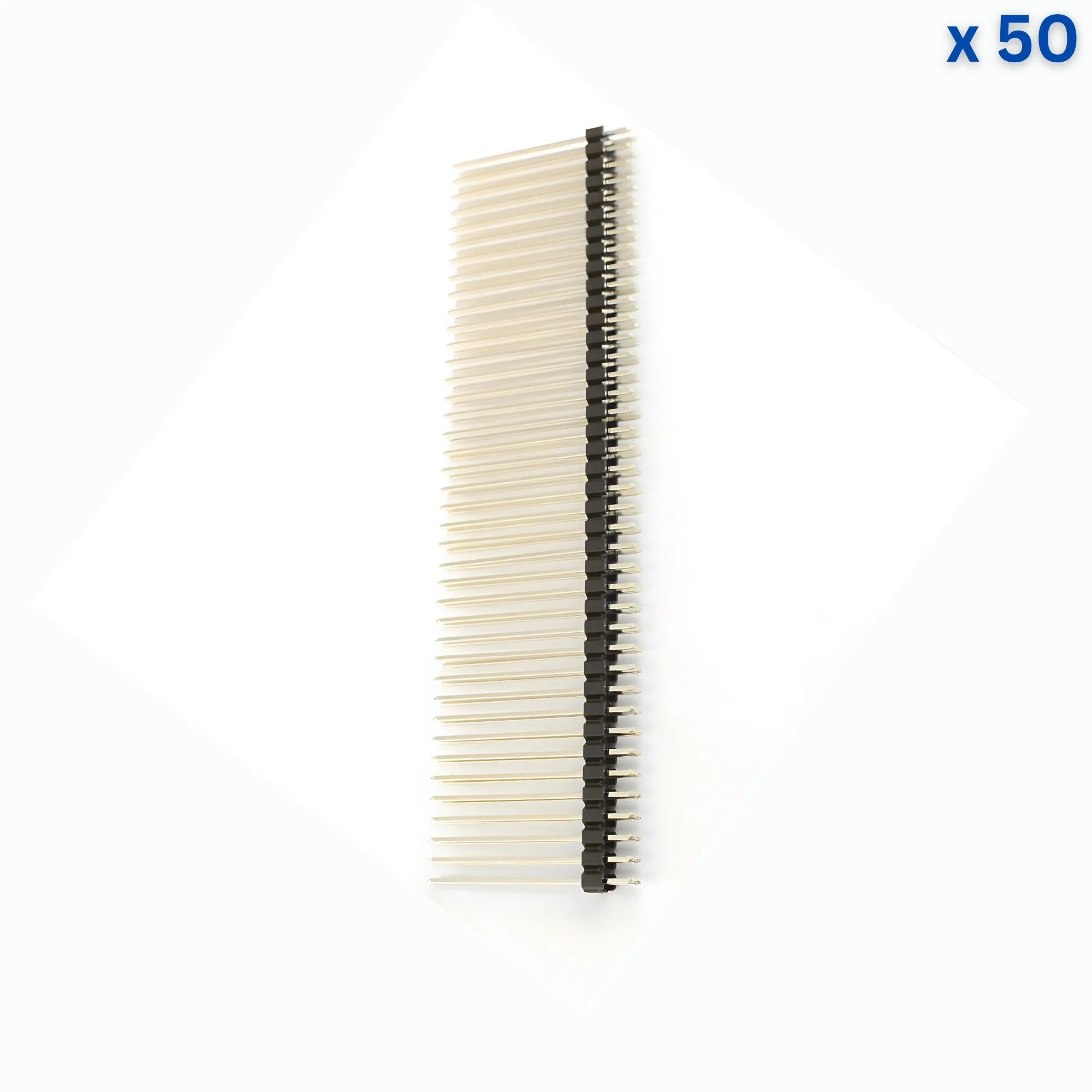

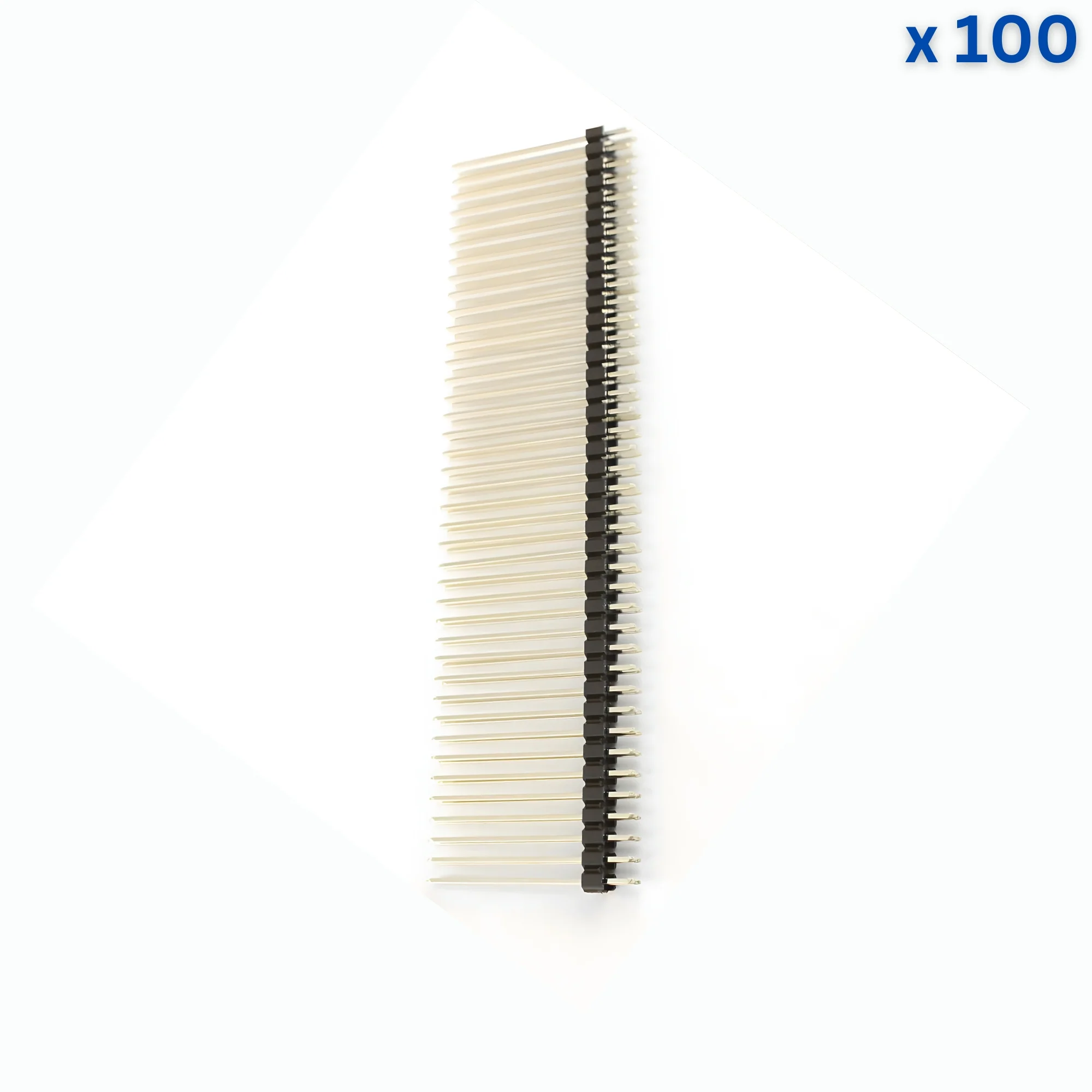

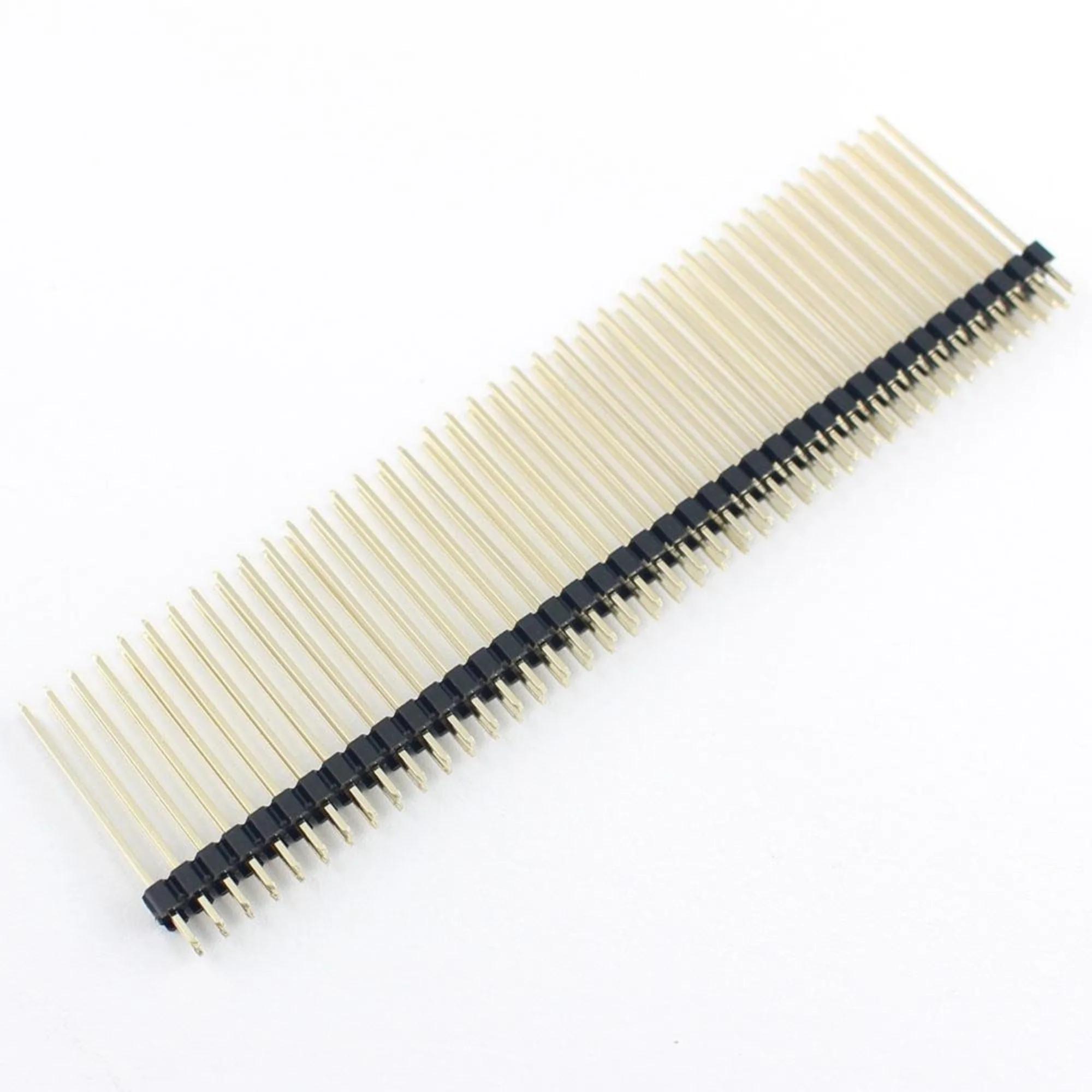

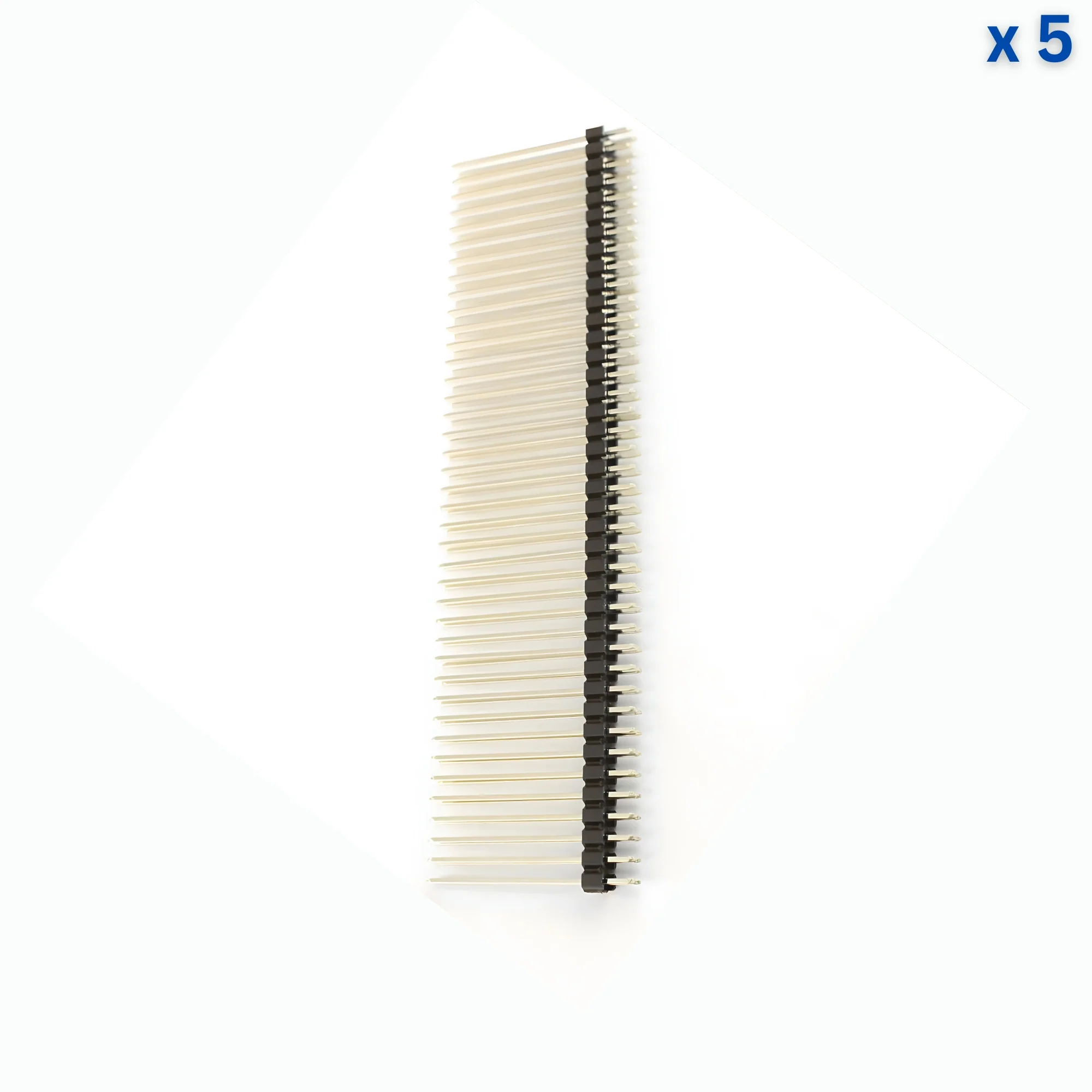

The 40×2 20 mm 2.54 mm Pitch Gold Male Pin Header is a double-row, through-hole male connector designed for reliable board-to-board and module-to-board connections. With a standard 2.54 mm pitch and extended 20 mm pin length, it is ideal for stacking PCBs, shield connections, and applications requiring extra clearance. Gold-plated pins ensure excellent conductivity, corrosion resistance, and long-term reliability.

Technical Specifications:

• Product Type: Male Pin Header

• Configuration: 2 × 40 pins

• Pitch: 2.54 mm (0.1 inch)

• Pin Length: ~20 mm

• Mounting Type: Through-Hole (THT)

• Orientation: Straight / Vertical

• Contact Material: Copper alloy

• Contact Plating: Gold-plated

• Insulator Material: Black thermoplastic

• Rated Current: ~1–3 A per pin (typical)

• Rated Voltage: Up to 250 V (typical)

• Operating Temperature: −40 °C to +105 °C

• Cuttable: Yes (can be cut to required pin count)

Features:

• Standard 2.54 mm pitch for broad compatibility

• Double-row design for high-density connections

• Gold-plated pins for low contact resistance and durability

• Extra-long 20 mm pins suitable for board stacking

• Strong mechanical stability after soldering

• Easily customizable length by cutting

Applications:

• Arduino, Raspberry Pi, and development board stacking

• Shield and daughter-board connections

• Embedded systems and IoT hardware

• Prototyping and test fixtures

• Industrial control and consumer electronics PCB assemblies
